Movement of Substance Quiz 4

·

·

0%
0 votes, 0 avg
1

Please answer in 5 Minutes

Time Over


Biology

Movement of Substance Quiz 4

Topic 2 Quiz 4

1 / 10

Category: Movement of Substances Quiz 4

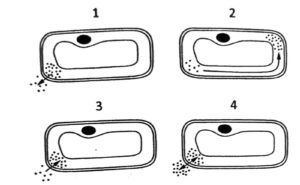

1) The diagram shows four identical plant cells. The dots show the concentration of a chemical. The dots show the concentration of a chemical. The arrows represent the direction of movement of the chemical. Which diagram or diagrams show a cell where active transport is taking place?

2 / 10

Category: Movement of Substances Quiz 4

2) The diagram shows three processes by which molecules move in living organisms.

triangle= concentration gradient of substance

H= high concentration of substance

L= low concentration of substance

arrow= direction of movement of molecules

Which of the following is correct?

OptionOsmosisDiffusionActive transport
A123
B321
C132
D312

3 / 10

Category: Movement of Substances Quiz 4

3) Cylinders of potato tissue are placed in different concentrations of a sugar solution. The graph shows the percentage change in length of the cylinders of potato tissue.
Which solution has the same water potential as the potato tissue?

4 / 10

Category: Movement of Substances Quiz 4

4) The diagram shows a plant cell in a 5% glucose solution. The concentration of the solution in the vacuole is equivalent to a 10% glucose solution. Which row states where osmosis occurs and the direction of water movement?

OPTIONSWHERE OSMOSIS OCCURDIRECTION OF WATER MOVEMENT
ACELL WALLINTO THE CELL
BCELL WALLOUT OF THE CELL
CVACUOLAR MEMBRANEINTO THE CELL
DVACUOLAR MEMBRANEOUT OF THE CELL

5 / 10

Category: Movement of Substances Quiz 4

5) Some substances in living organisms move by active transport.

Which line is correct for active transport?

Movement of Substance Quiz 4 Q232
Movement of Substance Quiz 4 Q232

6 / 10

Category: Movement of Substances Quiz 4

6) Two tubes containing human blood are treated as shown.

TUBE XTUBE Y
2 CUBIC CM BLOOD 2 CUBIC CM BLOOD
ANTI-CLOTTING AGENT ANTI-CLOTTING AGENT
15 CUBIC CM SALT SOLUTION 15 CUBIC CM DISTILLED WATER

The tubes are then spun at high speed to make the blood cells sink to bottom. What explains the difference in appearance of the tubes?

OPTIONS TUBE XTUBE Y
AThe cells have lost water and become smaller.The water has made blood clot
BThe cells have stuck together The cells have lost water and shriveled
CThe salt has made the cell clotThe water has diluted blood
DSpinning has made the cells collect at the bottomThe cells have gained water and burst

7 / 10

Category: Movement of Substances Quiz 4

7) The diagram shows cell in fresh blood , after the blood had been diluted with a liquid .

Which statement describes this liquid?

8 / 10

Category: Movement of Substances Quiz 4

8) The diagram shows a root hair cell and surrounding soil particles. Osmosis occur when region of higher and lower concentration of water molecules are separated by a partially permeable membrane. From the diagram, which are these regions?

OPTIONSHIGH CONCENTRATION OF WATER MOLECULESPARTIALLY PERMEABLE BARRIER LOWER CONCENTRATION OF WATER MOLECULES
A123
B134
C421
D431

9 / 10

Category: Movement of Substances Quiz 4

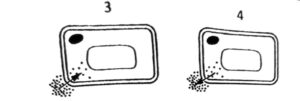

9) The diagram shows four identical plant cells. The number of dots represent the concentration of a chemical and the arrows show the directions in which the chemical is moving. Which diagram represent the cells carrying out active transport?





10 / 10

Category: Movement of Substances Quiz 4

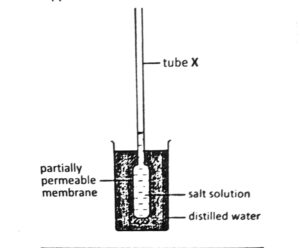

10) An experiment to investigate osmosis is set-up as shown. What happens?

OPTIONSVOLUME OF THE LIQUID IN TUBE XCONCENTRATION OF SALT SOLUTION
ADECREASESDECREASES
BDECREASESINCREASES
CINCREASESDECREASES
DINCREASESINCREASES

Your score is

The average score is 90%

0%
