Cell Structure and Organization Quiz 2
Topic 1 Quiz 2
1 / 11
Category: Cell Structure and Organization Quiz 2
1) The diagram shows a plant cell. Which structure is the cell membrane?
The cell membrane is a selectively permeable membrane which controls substances entering and leaving the cell.
2 / 11
2) The diagram refers to some structures found in cells. Which area in the diagram represents plant cells?
A plant cell has a large central vacuole, which stores the cell sap, many mitochondria to release energy for processes such as active transport and ribosomes for making protein.
3 / 11
3) The diagram shows a cell. Which numbers show the parts named ?
Structure 1 is the plasma membrane that encloses the cytoplasm (region 4). Structure 2 is the cellulose cell wall. Structure 3 is a chloroplast.
4 / 11

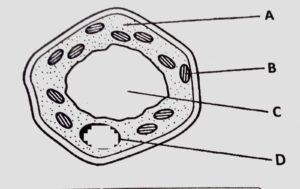

4) The diagram shows a cell from the leaf of a green plant.
What are the labelled structures?
Fact.
5 / 11

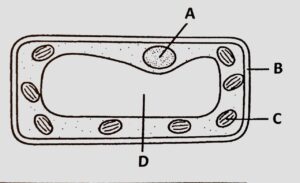

5) The diagram shows a typical plant cell. Which structure is made of cellulose ?
The cell wall of a plant cell contains cellulose.
6 / 11
6) Which structure in the plant cell contains chromosomes?
The nucleus of a cell contains chromosomes which carry genetic information of the cell
7 / 11
7) A plant is grown in bright sunshine. After a few hours, a leaf is stained with iodine solution . The diagram shows what is seen when the leaf is placed under a microscope . Which structure will be stained blue/black?
Structure C is chloroplast with synthesizes carbohydrates during photosynthesis. The starch produced from photosynthesis will turn iodine blue black (starch test).
8 / 11
8) The table applies to four cells.
which one is a xylem vessel?
Xylem tissues are plant cells modified to conduct water and mineral salts from the root to other parts of the plant. They are hollow tubes with no protoplasm so that water can flow continuously through them.
9 / 11
9) Which structures are present in animal cells?
Both cellulose cell wall and chlorophyll are present only in plant cells.
10 / 11
10) Which organelle is not correctly paired with its cellular function?
Endoplasmic reticulum is responsible for the synthesis and transport of lipids such as fats and steroids.
11 / 11
11) The table shows three functions of cells. Which row is correct ?
A root hair cell absorbs water and mineral salts . A xylem vessel has thick lignified cellulose walls to provide support. Red blood cell contains haemoglobin which absorbs oxygen and transports it as oxyhaemoglobin.
Your score is
Restart quiz
